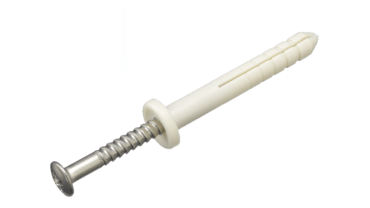

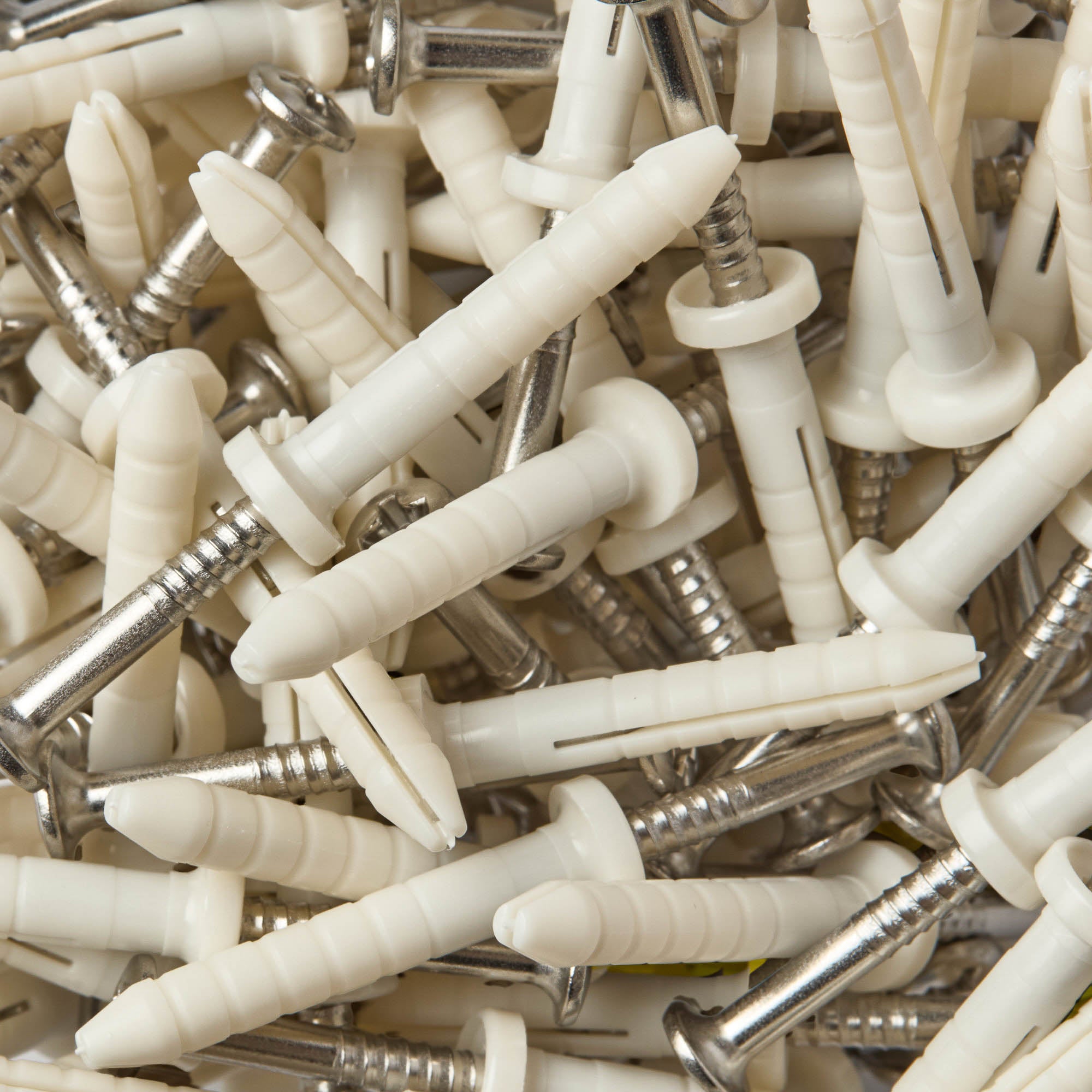

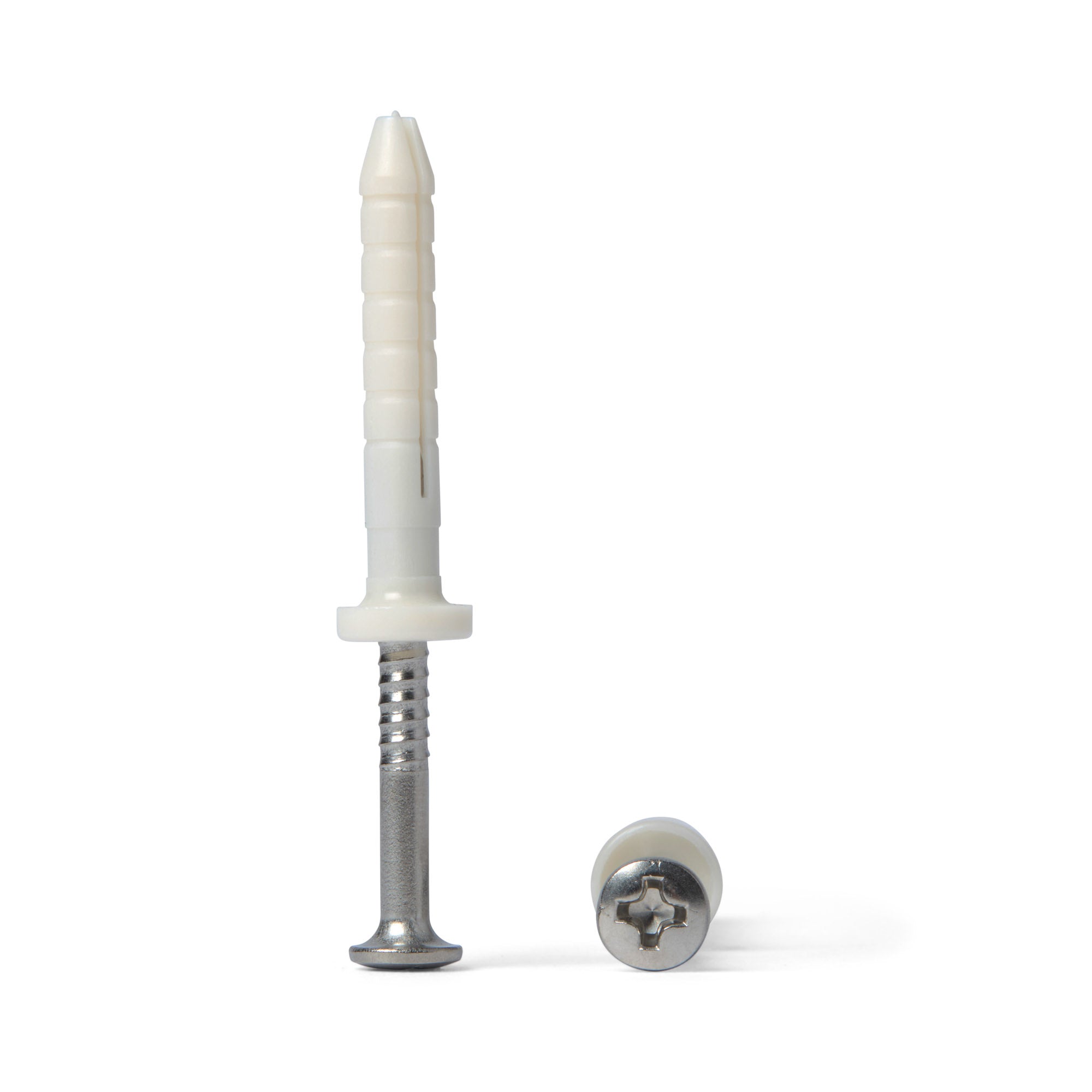

Polyamide PA6 (Nylon) Hit Rivet - Stainless Steel Nail

Manufactured to order.
SKU: PASSNHRD425
Regular price €0,77 - €1,19 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €1,19
500 pcs €1,13
1000 pcs €1,07
2500 pcs €0,95
5000 pcs €0,89
10000 pcs €0,83
20000 pcs €0,77
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Materiaali: PA6

Measurement System: Metric

Natural

Continuous use temperature: 80°C Maximum temperature: 150°C

Flammability UL94 HB-5VA

Polyamide PA6 (Nylon) Hit Rivet - Stainless Steel Nail on seuraavien standardien/normien mukainen:

Polyamide PA6 (Nylon 6) Hit Rivets with Stainless Steel Nails, available in diameters of 4mm to 6mm and lengths ranging from 25mm to 50mm, are designed for secure and reliable fastening in various applications. The combination of Nylon 6, a durable engineering thermoplastic, with a stainless steel nail ensures excellent mechanical properties and corrosion resistance. Nylon 6 provides good tensile strength, wear resistance, and thermal stability, while the stainless steel nail offers high strength and durability. These hit rivets are ideal for applications where strong, non-corrosive, and lightweight fasteners are required.

Diameter (mm) – 4, 5, 6

Length (mm) – 25, 35, 50

Advantages of Using Polyamide PA6 (Nylon 6) Hit Rivets - Stainless Steel Nail:

High Mechanical Strength: The combination of Nylon 6 and stainless steel provides excellent tensile and shear strength, ensuring secure and robust fastening.

Corrosion Resistance: The stainless steel nail offers superior corrosion resistance, making these rivets suitable for use in harsh and corrosive environments.

Thermal Stability: Nylon 6 maintains its properties across a broad temperature range, ensuring reliable performance in both high and low temperatures.

Lightweight: The use of Nylon 6 as the primary material makes these rivets significantly lighter than metal alternatives, aiding in weight reduction for assemblies.

Chemical Resistance: Nylon 6 resists a variety of chemicals, including oils and solvents, ensuring durability in chemically aggressive environments.

Ease of Installation: The hit rivet design allows for quick and easy installation, reducing assembly time and costs.

Specific Applications of Polyamide PA6 (Nylon 6) Hit Rivets - Stainless Steel Nail:

Automotive Industry:

Used in fastening interior and exterior panels, trim, and other components, benefiting from the lightweight and corrosion-resistant properties.

Ideal for use in under-the-hood applications where heat resistance and chemical resistance are crucial.

Construction and Building:

Employed in fastening cladding, insulation panels, and other building materials, providing secure and durable connections.

Suitable for use in exterior applications where weather resistance is necessary.

Electronics and Electrical Equipment:

Used in assembling enclosures and securing components, benefiting from the electrical insulating properties of Nylon 6.

Ideal for fastening in devices where non-corrosive and lightweight fasteners are needed.

Marine and Offshore:

Suitable for use in marine environments, providing resistance to saltwater corrosion and reducing weight on boats and other watercraft.

Employed in securing deck fittings, railings, and other marine components.

Furniture and Fixtures:

Used in the assembly of furniture, fixtures, and fittings, providing a durable and aesthetically pleasing fastening solution.

Ideal for applications requiring a clean finish and secure attachment.

Polyamide PA6 (Nylon 6) Hit Rivets with Stainless Steel Nails, available in diameters of 4mm to 6mm and lengths from 25mm to 50mm, offer a strong, lightweight, and corrosion-resistant fastening solution. Nylon 6 provides excellent mechanical strength, wear resistance, and thermal stability, while the stainless steel nail enhances durability and resistance to corrosion. These hit rivets are ideal for a wide range of applications, including automotive, construction, electronics, marine, and furniture industries. The combination of materials ensures reliable, long-lasting performance in demanding environments, making them an excellent choice for both indoor and outdoor use.

PA6 -tiedote on ladattavissa PDF-tiedostona alla.

Palauta komponentit 90 päivän kuluessa ja saat täyden hyvityksen. Katso lisätietoja palautusehdoista.

Polyamide PA6 (Nylon 6) Hit Rivet (Stainless Steel Nail) Dimension Table
Diameter (mm) Height Diameter (mm) Head Height (mm)
4 7 1.7
5 10 2
6 11 2

Mitoitustaulukko

Kaikkien saatavilla olevien kokojen Polyamide PA6 (Nylon) Hit Rivet - Stainless Steel Nail mitat on esitetty yllä olevan tuotepiirustuksen mukaisesti.

Key Polyamide Nylon (PA6) Properties

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PA6 Tärkeimmät ominaisuudet

  • Polyamide Nylon (PA6) is well-known for its high mechanical strength and toughness, making it an ideal material for components that require durability and impact resistance. PA6 exhibits excellent tensile strength, which allows it to withstand significant loads without deforming. This property is particularly valuable in applications such as automotive parts, industrial gears, and structural components, where the material must endure continuous mechanical stress. Additionally, PA6's toughness ensures that it can absorb shocks and impacts without cracking, making it suitable for both heavy-duty and high-impact applications.

  • Another key property of Polyamide Nylon (PA6) is its excellent abrasion and wear resistance. PA6's ability to resist surface wear and tear extends the lifespan of components that are subjected to constant friction or repetitive motion. This makes PA6 a preferred material for use in bearings, bushings, and gears, where long-term reliability and low maintenance are critical. Its wear resistance also ensures that PA6 components maintain their integrity and performance over time, even in harsh operating conditions, reducing the need for frequent replacements.

  • Polyamide Nylon (PA6) also offers good chemical and thermal resistance, making it versatile for various industrial applications. PA6 is resistant to many oils, greases, fuels, and chemicals, which allows it to perform well in environments where exposure to such substances is common. Its thermal resistance enables it to maintain its mechanical properties at elevated temperatures, making it suitable for applications that involve heat, such as engine components and electrical insulators. The combination of chemical and thermal resistance ensures that PA6 can be used in challenging environments without compromising its durability or functionality.
