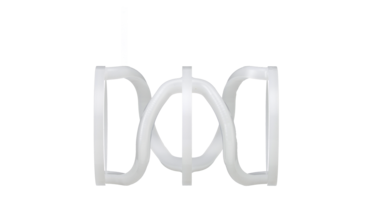

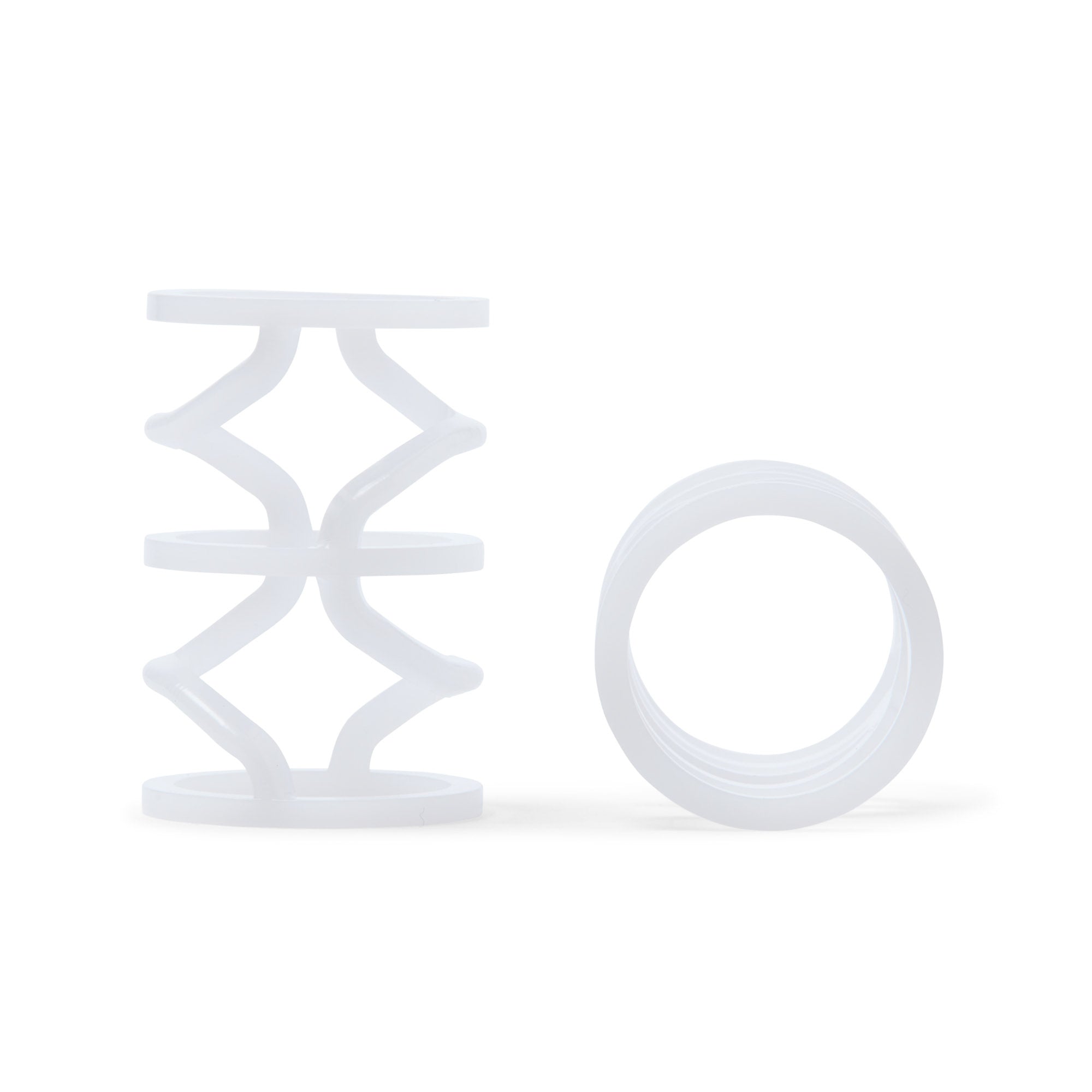

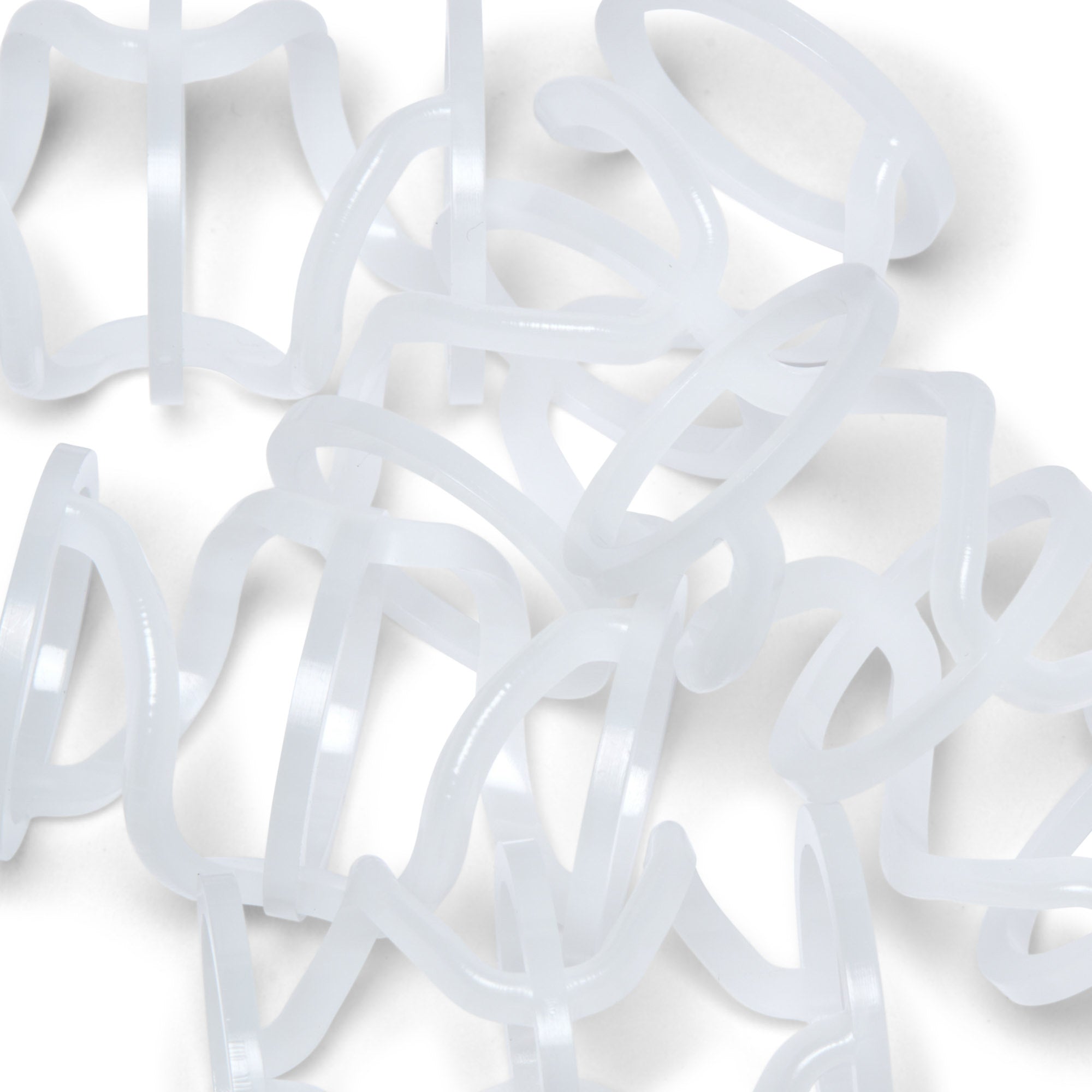

Polyacetal (POM) OMEGA Type Spring (19.5-24-36L)

1 In Stock
SKU: POMOCS1952436
Regular price €6,48 - €9,97 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €9,97
500 pcs €9,47
1000 pcs €8,97
2500 pcs €7,98
5000 pcs €7,48
10000 pcs €6,98
20000 pcs €6,48
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Materiaali: POM

Measurement System: Metric

Colour: White

Continuous use temperature: 95°C/203°F

Flammability: UL94 HB

Polyacetal (POM) OMEGA Type Spring (19.5-24-36L) on seuraavien standardien/normien mukainen:

Polyacetal (POM) OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, is a component designed for applications requiring excellent mechanical properties, low friction, and high dimensional stability. POM, also known as acetal, is a highly crystalline thermoplastic known for its high strength, stiffness, and resistance to wear and abrasion. These springs are engineered to provide reliable compression and durability in various demanding environments, maintaining their performance and integrity across a wide range of temperatures and conditions.

Size:

Inner Diameter (mm) - 19.5mm

Outer Diameter (mm) - 24mm

Free Length (mm) - 36mm

Spring Rate (N/mm) – 0.59-0.96

Advantages of Using Polyacetal (POM) OMEGA Type Compression Springs:

High Mechanical Strength: POM provides excellent tensile and compressive strength, ensuring robust performance under various loads.

Low Friction: The material's low friction coefficient reduces wear and improves efficiency in dynamic applications.

Dimensional Stability: POM offers high dimensional stability, maintaining its shape and mechanical properties over time and under varying conditions.

Wear and Abrasion Resistance: Excellent resistance to wear and abrasion, extending the lifespan of the springs and the components they interact with.

Chemical Resistance: Resistant to many solvents, fuels, and chemicals, making it suitable for use in corrosive environments.

Fatigue Resistance: POM exhibits good fatigue resistance, making it suitable for cyclic loading applications.

Low Moisture Absorption: The material absorbs minimal moisture, ensuring consistent performance in humid or wet environments.

Specific Applications of Polyacetal (POM) OMEGA Type Compression Springs:

Automotive Industry:

Used in various automotive components such as fuel systems, throttle valves, and interior mechanisms where high strength and low friction are required.

Consumer Electronics:

Applied in devices like printers, cameras, and other electronics where durability, precision, and smooth operation are critical.

Medical Devices:

Utilised in medical instruments and diagnostic equipment where high precision, dimensional stability, and resistance to wear are essential.

Ideal for components requiring consistent spring action and long-term reliability.

Industrial Machinery:

Employed in machinery and equipment that experience high wear and require robust components to maintain operational integrity.

Aerospace:

Used in aerospace applications where lightweight and high-strength materials are essential, such as in control systems and safety equipment.

Suitable for components exposed to varying environmental conditions.

Construction:

Applied in building materials and systems that require durable, wear-resistant components that can withstand outdoor exposure.

Plumbing and Fluid Handling:

Utilised in plumbing and fluid handling systems due to its chemical resistance and low moisture absorption.

Polyacetal (POM) OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, offer a robust and reliable solution for various demanding applications. These springs benefit from POM's high mechanical strength, low friction, dimensional stability, wear and abrasion resistance, chemical resistance, fatigue resistance, and low moisture absorption. Ideal for use in automotive, consumer electronics, medical devices, industrial machinery, aerospace, construction, and plumbing systems, these springs ensure long-lasting performance and reliability in critical environments.

POM -tiedote on ladattavissa PDF-tiedostona alla.

Palauta komponentit 90 päivän kuluessa ja saat täyden hyvityksen. Katso lisätietoja palautusehdoista.

Polyacetal (POM) OMEGA Type Spring (19.5-24-36L)

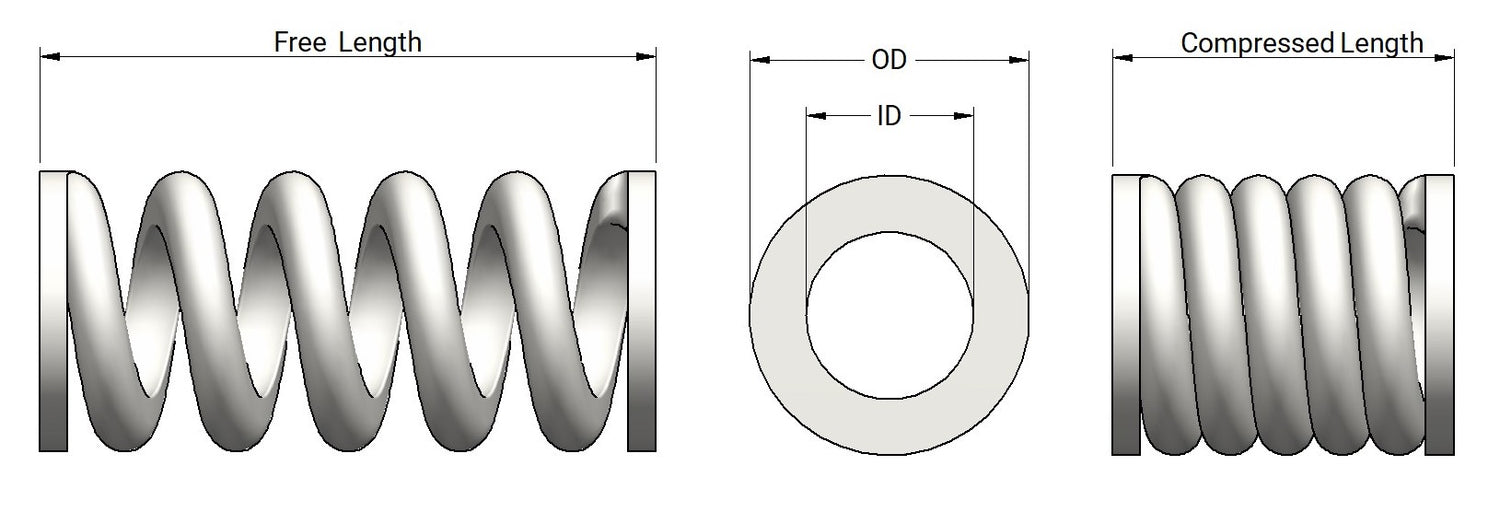

Tuotteen piirustus

Inner Diameter (mm) Outside Diameter (mm) Free Length (mm) Solid Height (mm) Spring Rate (mm)
19.5 24 36 18 0.59-0.96

Mitoitustaulukko

Kaikkien saatavilla olevien kokojen Polyacetal (POM) OMEGA Type Spring (19.5-24-36L) mitat on esitetty yllä olevan tuotepiirustuksen mukaisesti.

Key Polyacetal (POM) Properties

Polyacetal (POM) Compression Springs - High Performance Polymer-Plastic Fastener Components

Polyacetal (POM) Tietolehti

Alla olevasta linkistä pääset tutustumaan POM -tietolomakkeeseen. Tämä sisältää ominaisuuksia, kuten mekaaninen, sähköinen, terminen ja kemiallinen kestävyys.

Lataa PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

POM Tärkeimmät ominaisuudet

  • Low Cost: Compared to other polymer components, POM is very cost effective, making it the perfect material for applications that require a high volume of components.

    High stiffness and strength: POM has a high modulus of elasticity, which means it is stiff and provides good structural support. It also has good tensile strength, which makes it resistant to breaking or cracking under tension.

    Low friction and wear resistance: POM has excellent wear resistance, which makes it suitable for use in applications that require sliding or rotating parts. It also has a low coefficient of friction, which means it can slide easily against other materials.


  • High fatigue resistance: POM has excellent fatigue resistance, which means it can withstand repeated cycles of stress without losing its mechanical properties.

    Excellent dimensional stability: POM has low water absorption and is highly resistant to creep, which means it maintains its shape and size over time. It also has low thermal expansion, which means it does not expand or contract significantly with changes in temperature.

    Chemical resistance: POM is highly resistant to a wide range of chemicals, including alcohols, aldehydes, esters, and many acids and bases. This makes it suitable for use in harsh environments where exposure to chemicals is a concern.

  • Electrical insulation properties: POM is an excellent insulator and has good dielectric strength, which makes it suitable for use in electrical applications where high insulation properties are required.
