Polyamide PA6 (Nylon 6) Hit Rivet - Iron Nail

Materiaali: PA6

Measurement System: Metric

Natural

Continuous use temperature: 80°C Maximum temperature: 150°C

Flammability UL94 HB-5VA

Polyamide PA6 (Nylon 6) Hit Rivet - Iron Nail on seuraavien standardien/normien mukainen:

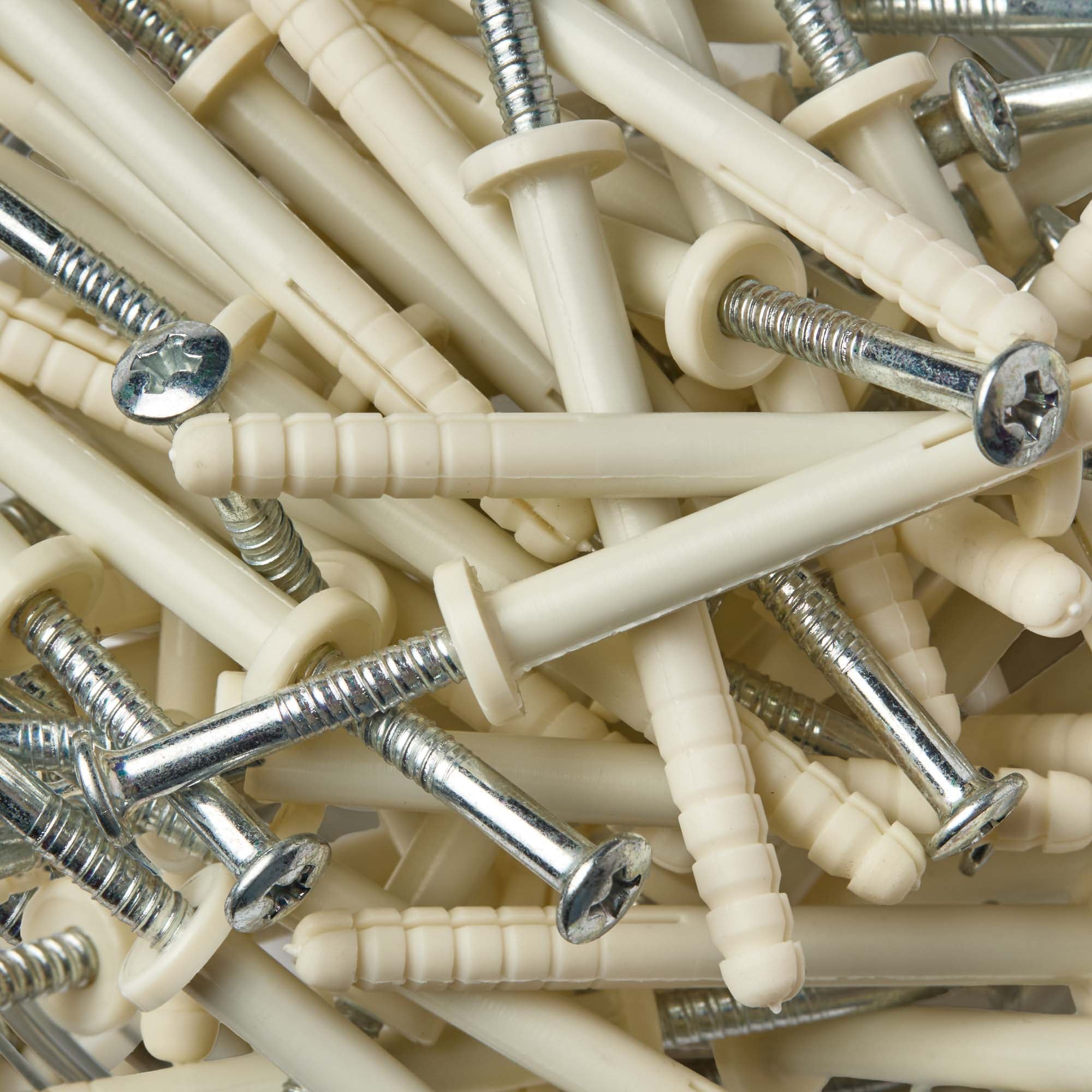

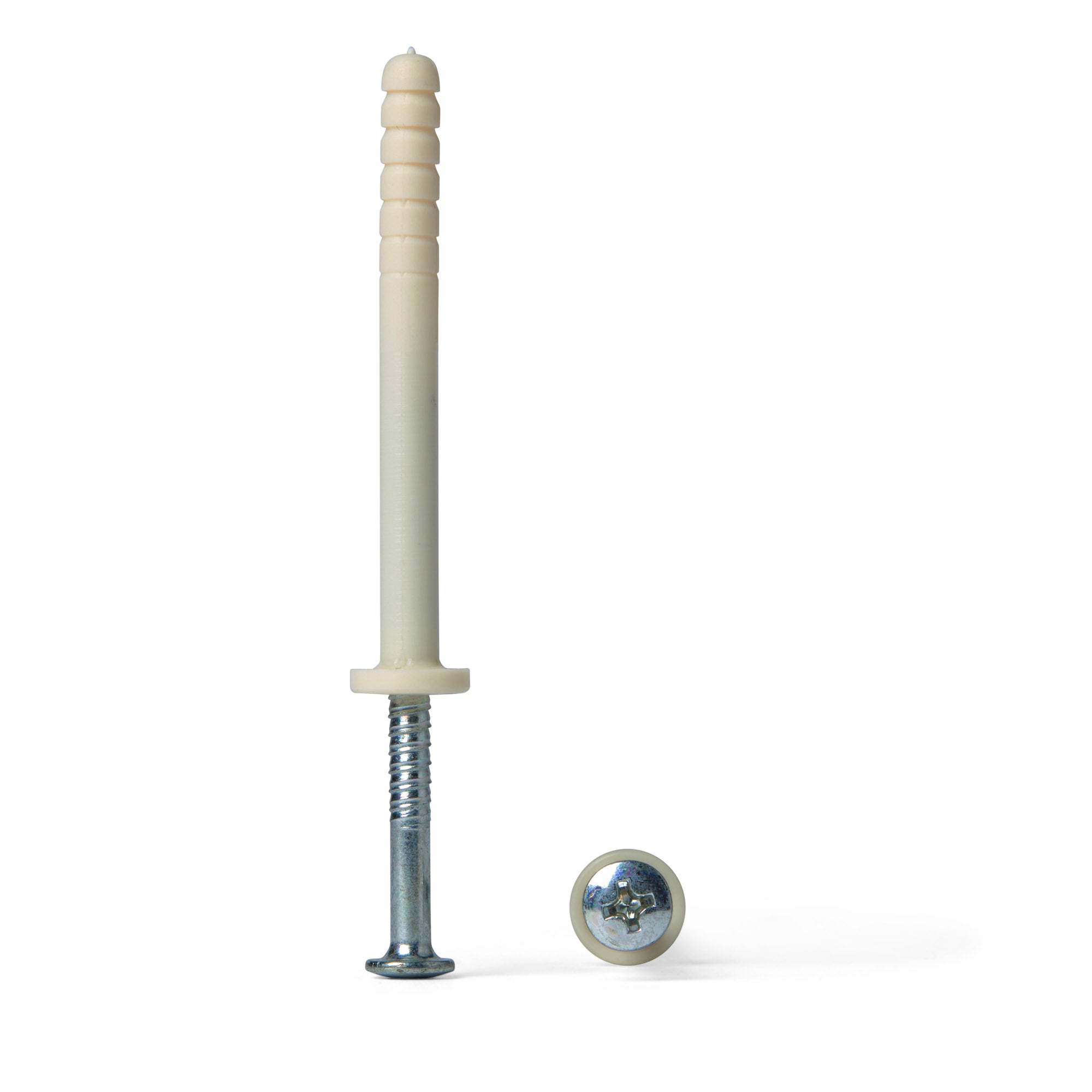

Polyamide PA6 (Nylon 6) Hit Rivets with Iron Nails, available in a diameter of 5mm and lengths ranging from 35mm to 50mm, are designed for durable and reliable fastening in various applications. These hit rivets feature a Nylon 6 body paired with an iron nail, combining the excellent mechanical properties of Nylon 6 with the strength of iron. Nylon 6 offers high tensile strength, good wear resistance, and thermal stability, while the iron nail provides additional rigidity and load-bearing capacity. This combination makes the rivets ideal for applications requiring a strong, secure fastening solution that also benefits from the lightweight and non-corrosive properties of Nylon 6.

Ø Diameter (mm) – 5mm

Length (mm) – 35, 50mm

Advantages of Using Polyamide PA6 (Nylon 6) Hit Rivet (Iron Nail):

Enhanced Strength: The iron nail adds rigidity and strength to the Nylon 6 body, providing a secure and reliable fastening solution capable of handling higher loads.

Corrosion Resistance: The Nylon 6 body offers excellent resistance to corrosion, protecting the iron nail and enhancing the rivet's durability in various environments.

Thermal Stability: Nylon 6 maintains its properties under a wide range of temperatures, making these rivets suitable for both high and low-temperature applications.

Good Wear Resistance: The wear-resistant nature of Nylon 6 ensures that the rivets maintain their integrity over time, even in demanding conditions.

Electrical Insulation: The non-conductive properties of Nylon 6 provide electrical insulation, making these rivets suitable for applications where electrical isolation is important.

Ease of Installation: The hit rivet design allows for quick and straightforward installation, reducing labour time and costs.

Specific Applications of Polyamide PA6 (Nylon 6) Hit Rivet (Iron Nail):

Automotive Industry:

Used in securing interior panels, trims, and other components where a combination of strength and lightweight is beneficial.

Suitable for under-the-hood applications where thermal stability and chemical resistance are required.

Construction and Building:

Employed in the installation of cladding, insulation panels, and other building materials, providing a strong and secure fastening.

Ideal for applications where non-corrosive properties are necessary, such as in damp environments.

Electronics and Electrical Equipment:

Used to secure components in electronic devices and enclosures, benefiting from the electrical insulation properties of Nylon 6.

Ideal for applications where the rivets need to be non-conductive to prevent electrical shorts.

Furniture and Consumer Goods:

Applied in the assembly of furniture and fixtures, providing a durable and aesthetically pleasing fastening solution.

Suitable for consumer products requiring a lightweight yet strong fastener.

Marine and Coastal Environments:

Used in applications exposed to moisture and saltwater, where the corrosion resistance of Nylon 6 is advantageous.

Ideal for securing fittings and equipment in boats and coastal structures.

Polyamide PA6 (Nylon 6) Hit Rivets with Iron Nails, available in a 5mm diameter and lengths from 35mm to 50mm, offer a robust and reliable fastening solution. These rivets combine the high tensile strength, thermal stability, and wear resistance of Nylon 6 with the added strength of an iron nail, making them suitable for demanding applications across automotive, construction, electronics, furniture, and marine industries. The Nylon 6 component provides excellent corrosion resistance and electrical insulation, ensuring long-lasting performance in challenging environments, while the iron nail enhances the overall load-bearing capacity of the rivet. This combination makes these hit rivets a versatile and effective choice for various fastening needs.

PA6 -tiedote on ladattavissa PDF-tiedostona alla.
